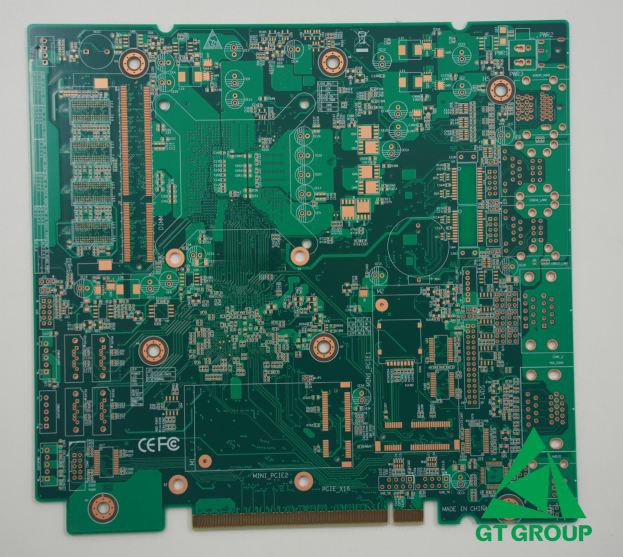

10 Layer Rigid Printed Circuit Board With Tg150 FR4 OSP+ Golden Finger Technology

MOQ:	1 پنل
قیمت:	قابل مذاکره
Payment Terms:	t/t

Detail Information

توضیحات محصول

Detail Information

گواهی:

ISO9001, TS16949

قسمت:

صفحه مدار سفارشی 10 لایه

ضخامت مس:

1oz برای هر لایه

ضخامت تخته:

FR4 TG150 1.6mm

سرویس PCBA:

مونتاژ اجزای SMD SMT DIP

فناوری:

کنترل Impendace ، انگشت گلدر+ Bevel

حداقل فضای خط:

3mil (0.075mm)

حداقل اندازه سوراخ:

0.2 میلی متر

اندازه سوراخ:

0.2 میلی متر

جزئیات بسته بندی:

بسته خلاء

برجسته کردن:

10 layer rigid PCB with Tg150,FR4 heavy copper PCB with OSP,golden finger technology PCB

FR4 heavy copper PCB with OSP

golden finger technology PCB

توضیحات محصول

Product Description:

A 10-layer, 1 oz rigid PCB is a high-performance circuit board with 10 conductive copper layers and a standard copper thickness of 1 ounce on each layer. This type of board is used in advanced electronics where high density, reliability, and signal integrity are essential.

The term "10-layer" refers to the number of conductive copper layers. These layers are stacked and separated by insulating materials (dielectrics) like FR-4 (fiberglass-epoxy laminate). The stack-up of these layers is carefully designed to optimize performance. A typical configuration might include:

Signal Layers: These layers carry data and signals between components. With 10 layers, designers have ample space to route complex circuits, reducing signal congestion and allowing for high-density component placement.

Power and Ground Planes: Dedicated layers for power and ground provide a stable and low-impedance path for current, which is crucial for high-speed digital circuits. They also act as a shield to minimize electromagnetic interference (EMI) and help with heat dissipation.

Technical Parameters:

Product item	10 layer rigid PCB board
Board Thickness	FR4 Tg150 1.6mm
Processing Technology	Impendace control, golden finger
Solder Mask Color	Geen soldermask+ white silkscreen
Standard Testing	IPC Class 2
Minimum Hole Size	0.2mm
Pcba Service	SMD SMT DIP Component Assembly
Minimum Line Space	3mil (0.075mm)
Min Hole Size	0.2MM

Support and Services:

Our Product Technical Support and Services for the Heavy Copper PCB include:

- Expert consultation on design and manufacturing considerations

- Assistance with material selection and specifications

- Guidance on meeting industry standards and regulations

- Troubleshooting and resolution of technical issues

- Customization options to meet specific requirements
